5 piece (MOQ)
| Business Type | Manufacturer, Exporter, Retailer |
| Enclosure | SS 304 |
| Sensing Element | SS316 Diaphragm |
| Process Connection | SS304 / SS316 |
| Click to view more | |
Product Details
Dial Size
63/100/150/200/250 mm
Pressure Range
VAC -1 Kg/Sqcm to 600 Kg/Sqcm
Mounting
Direct
Entry
Bottom
Diaphragm Chamber
SS304 / SS316 (Teflon Coating Optional)
Brand Name
INDUS
Pressure Measurement Accuracy
+/- 1% FSD
Product Code
SLDG
Port
Kolkata
Delivery Time
7-10 days
Packaging Details
Safely packed in Corrugated Boxes

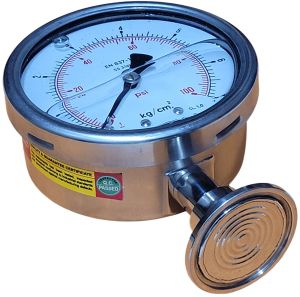

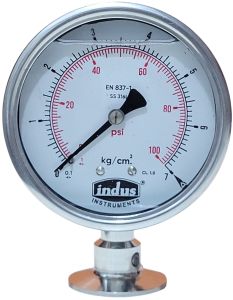

INDUS make Diaphragm Sealed pressure gauges, also known as Chemical Seal Gauge are recommended where the fluid is highly corrosive, contaminated, viscous or liable to crystallize inside the system. Diaphragm seals is use to isolate the measuring system of the gauge from the corrosive Liquid. The gauge above the diaphragm seal is filled with Silicon Oil, which transmit the pressure acting on diaphragm to the bourdon tube. The gauge and diaphragm seal can also be separated with capillary tube up to 5Mtr in length.
Special Features
- Glycerin filled cases
- Teflon Coated Wetted Parts for Corrosive liquids.
