| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Insertion Type | Used in Pipe Line of Size 40 Nb to 300 Nb |
| Full Bore Type | Used in Pipe Line of Size 6nb, 20 Nb, 25nb & 50nb |
| Fluid | Water |
| Click to view more | |

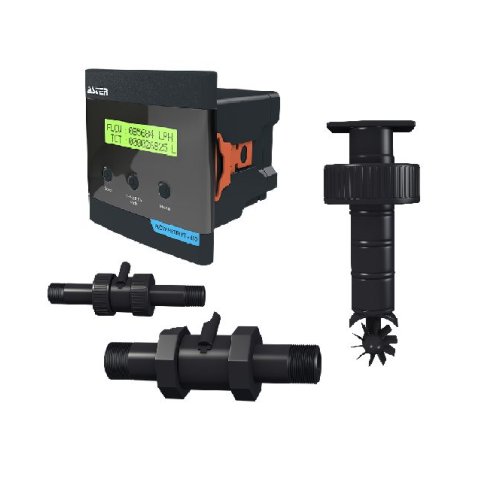

Product Details
Sensor Body
Noryl
Impeller
Noryl
Accuracy
+/ 2% of FS
Bearing
Carbide
Max Media Temperature
60 Deg C
Max Working Pressure
Upto 5 kg/cm2
Features
- Inexpensive and accurate
- All Plastic wetted parts
- Easy to install and maintain
- Threaded housing allows field maintenance.
- Each fitting individually calibrated and marked with K factor. (ml/pulse)
- Ceramic ball bearing for superior low flow performance
- High amplitude pulse output signal can travel even 100 meter distance without the need of transmitter
- Sensor can be used directly with PLC or Data logger
- For best results it is recommended to provide a straight run of 10 and 5D on the upstream and downstream respectively.
