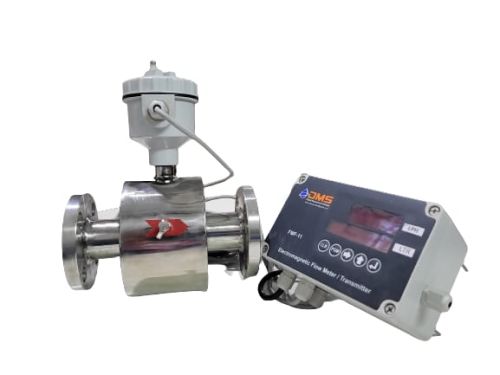

Electromagnetic Flow Meter


Electromagnetic Flow Meter

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier, Retailer
Display Digital
Type Integral / Remote Mounting / blind 4-20mA Transmitter
Enclosure Aluminium Die Cast
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Power Supply
110 V / 220 V AC
Working Pressure MAX
Upto 25 Kg/cm2
Media Temperature MAX
Upto 150 Deg C
Electrode Materials
SS 316/SS 316L/ hastelloy C
Inner Lining
PTFE / Hard Rubber.
Flow Rate
m³/hr, Lit/hr, Lit/min & Lit/sec
Accuracy
± 1% (10 % to 90 % of calibrated range in ref. conditions)

We are dealers for Full Bore Electromagnetic Flow Meter in process control instrumentation Maintenance free low cost, highly stable reliable & ideal flow meter suitable for wide ranges of liquid flow measurements the flow meter with low pressure. The measurement being based on ‘Faraday’s law of electromagnetic induction’ is independent of viscosity, density, pressure and temperature of the flowing media & measurement is a true volumetric flow measurement. Standard current output of 4 – 20 mA DC is provided which is directly proportional to the instantaneous volumetric flow rate.

Full Bore Electromagnetic Flow Meter can be used for precise flow measurement of all electrically conductive liquids such as sledges, slurries, sewage, milk, water and waste water.

Applications

  • Chemical measurement, Water/ Wastewater Treatment & metering
  • Building Automation & plant automation
  • Pulp, paper, Food & Beverage
  • Automated meter reading
  • Drinking water / Public utility.


Dimensions

  • 160 mm (L) x 100 mm (W) x 80 mm (D) (Head mount mounting)
  • 64 mm (L) x 44 mm (W) x 35 mm (D) (remote Mounting)
